Tools for In-house Artists

Problem

Cinev Studio delivered an Unreal-based 3D editor through the web. Artists reported not knowing which Unreal settings to change when registering characters, and lacked a clear way to check that their assets appeared correctly. Early characters used a single texture without separate head, hair, and body parts, so color variations required repainting.

Part Reuse, Registration & Preview

I developed and maintained an Unreal C++ plugin that supports character-part separation and texture and material reuse. Separating head, hair, and body enabled color variations without repainting textures. I built tools for the art and planning teams to register and modify presets without code changes and preview the results in the Unreal editor.

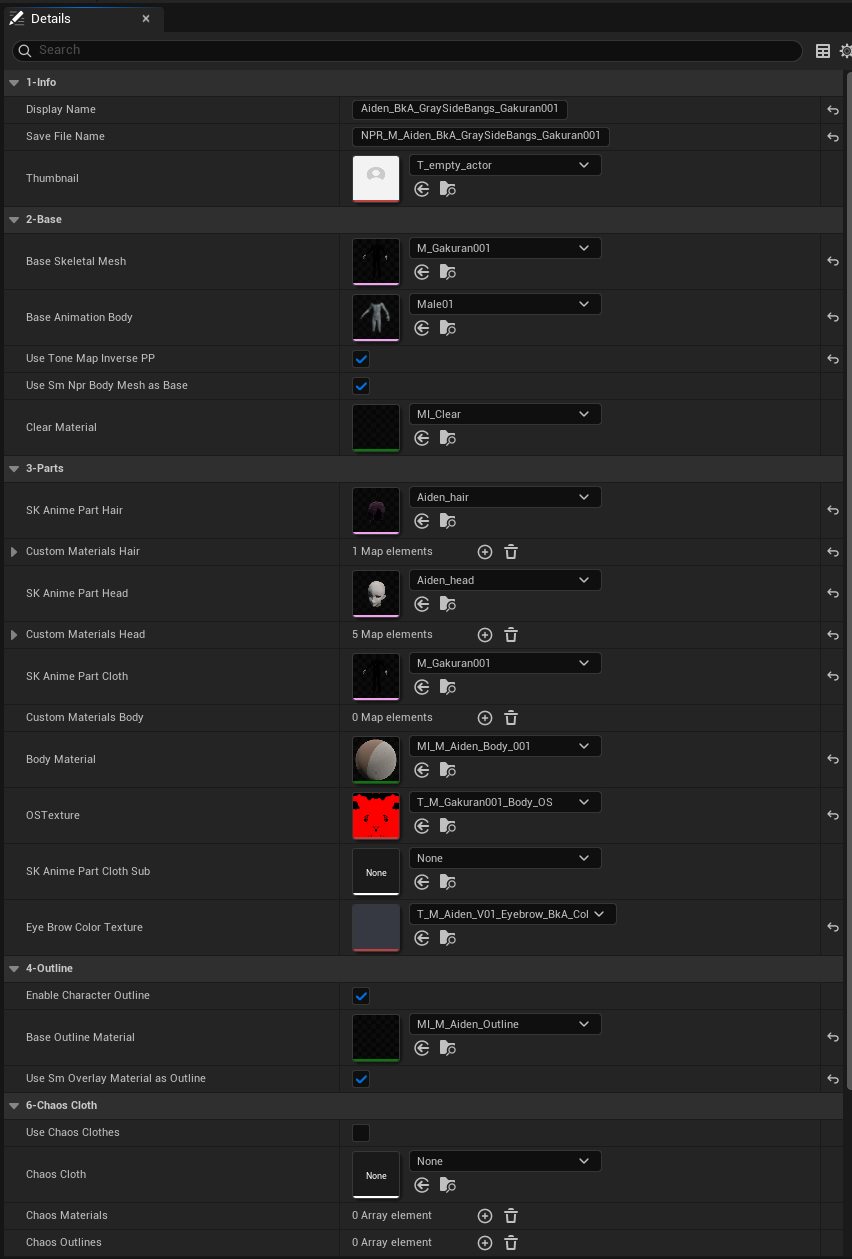

NRC Data Asset — Info, Base, Parts, Outline, Chaos Cloth settings

NRC Data Asset — managing parts, materials, outline, and Chaos Cloth settings in one place

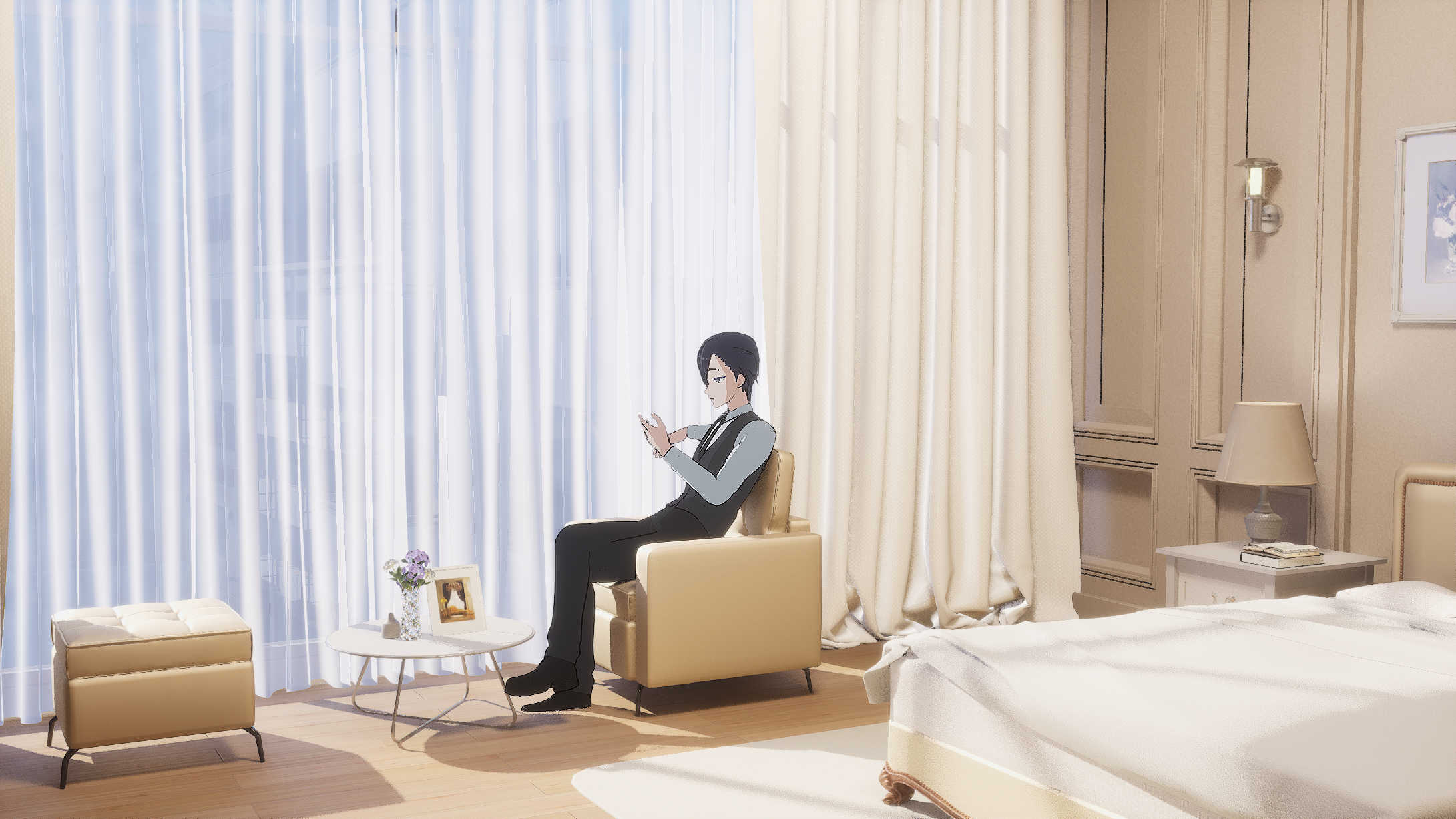

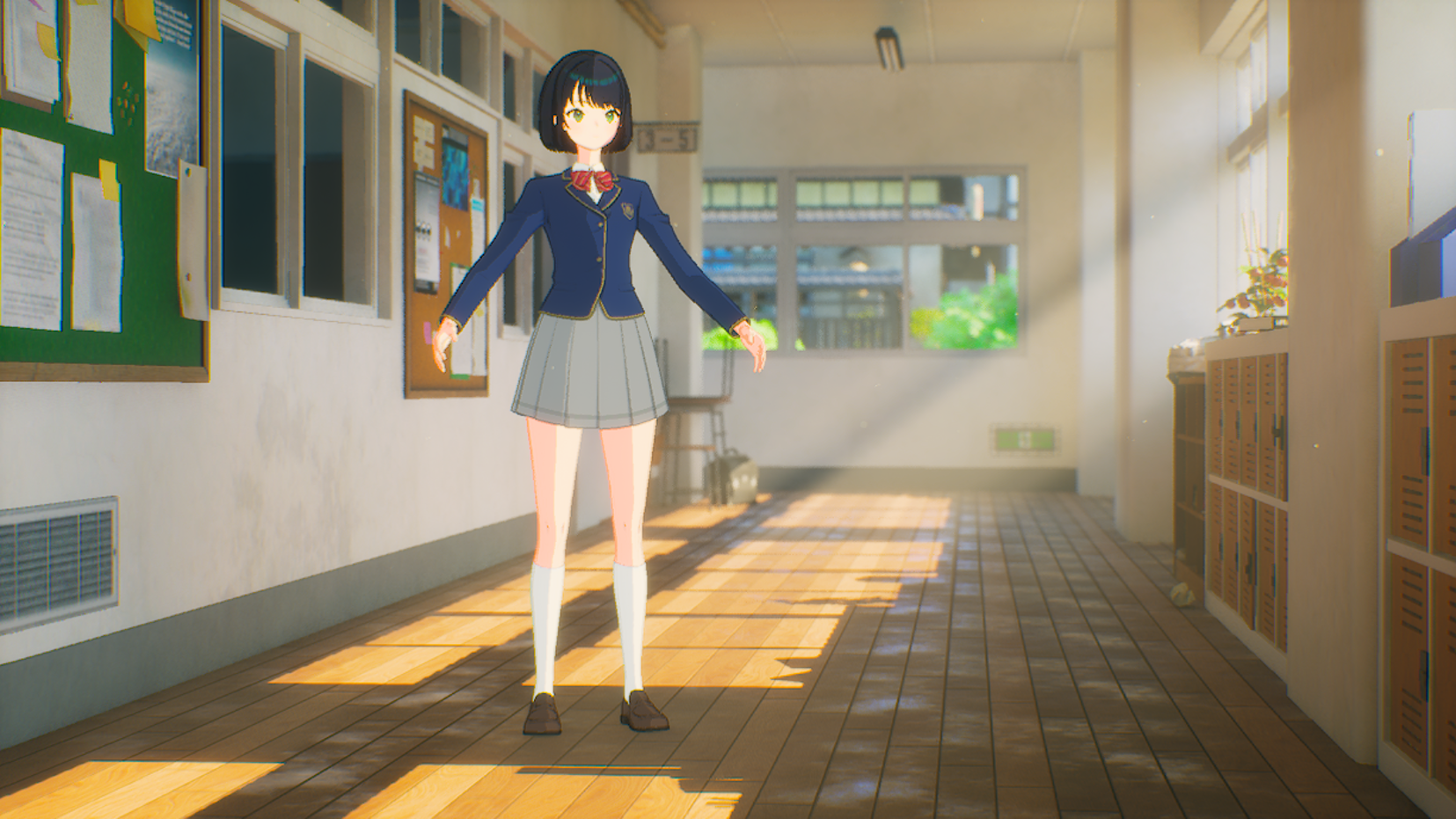

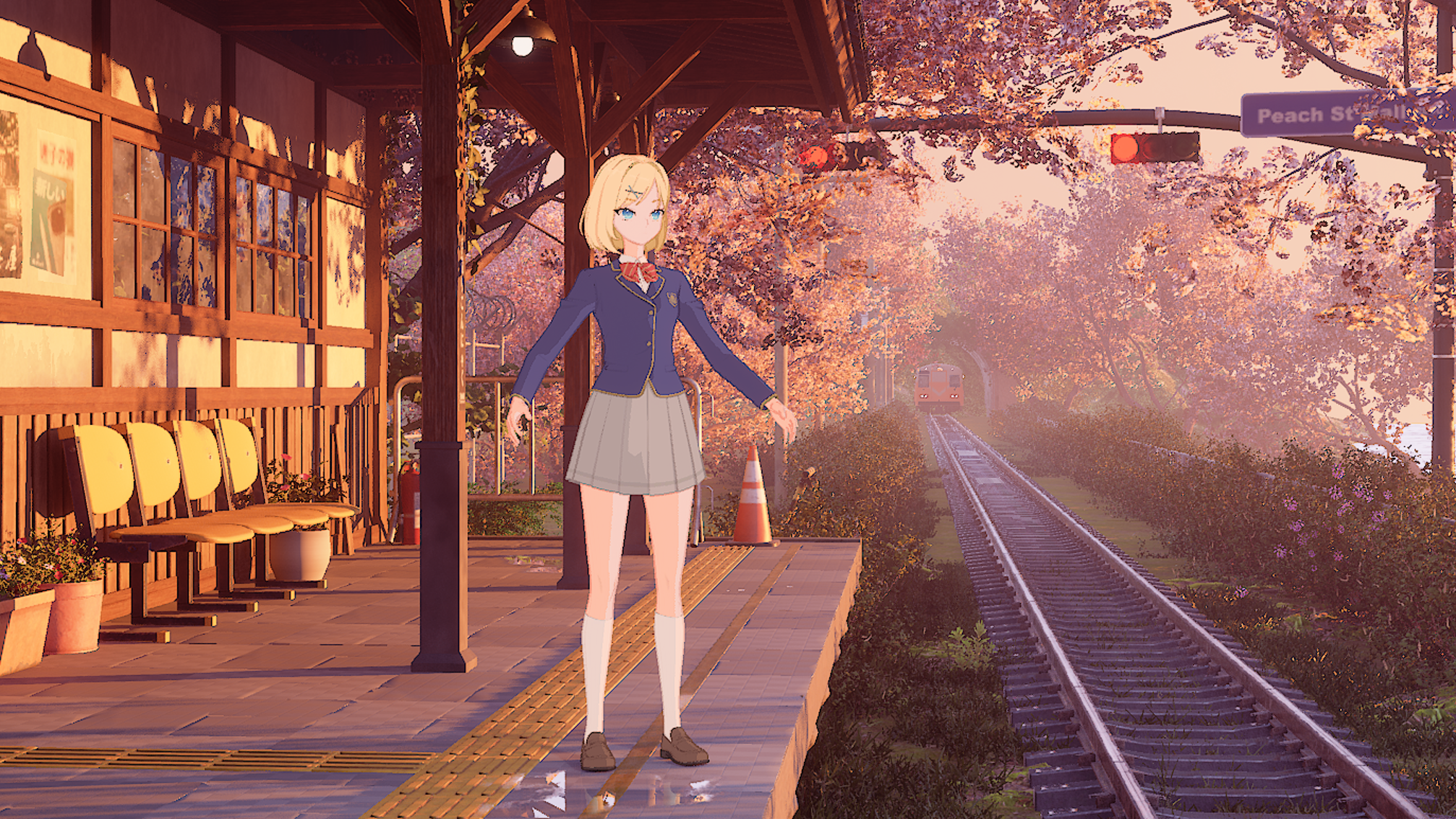

Editor preview — verifying NPR character placement on a background

Editor preview — checking NPR characters on background without launching the game

A texture budget that accounts for close-ups

The baseline texture limit was 1024×1024. Characters initially followed the same rule, but close-ups and zooms exposed a loss of detail. I allowed 2048×2048 textures for faces and hair, making an exception where shot framing required it.

Changes and results

Area	Before	After
Part and resource reuse	Repaint a single texture to change colors	Reuse textures and materials across parts; change colors without repainting
Save / Load	Authoring and runtime data combined in one Blueprint	Editor registration separated from Data Asset-based runtime loading
Preset authoring	Configuration managed in a complex character actor	Registration, edits, and look previews without code changes
External characters	Per-model camera reference setup	Facial reference points used for cameras and thumbnails

System Structure

The same runtime character Blueprint handles presets authored by in-house artists and VRMs imported by external users. The authoring tools produce Data Assets, while external imports use the existing VRM loader and facial reference-point detection. Both input paths feed into the product’s character loading workflow.

[1] NPR Character Manager (C++ Plugin)
    └─ BP_Character_EnvCheck ─── Editor (for in-house artists)
        ├─ Parts assembly (Head/Hair/Body)
        ├─ Preset save → Data Asset production
        └─ Editor Tick → Preview without PIE

                    Data Asset ─────┐
                                    ▼
[2] BP_Basemodel_TF ─────────── Runtime (inherits CinevCharacter)
    ├─ Internal: Data Asset → Per-part async load
    └─ External: VRM loader → Whole-model load
                    ▲
                    │ VRM info node update
                    │
[3] VRM Reference Points ──── VRM4U Plugin (C++)
    ├─ 4-level fallback face detection (crown/eyes/mouth/nose)
    └─ Camera target + automatic thumbnail capture

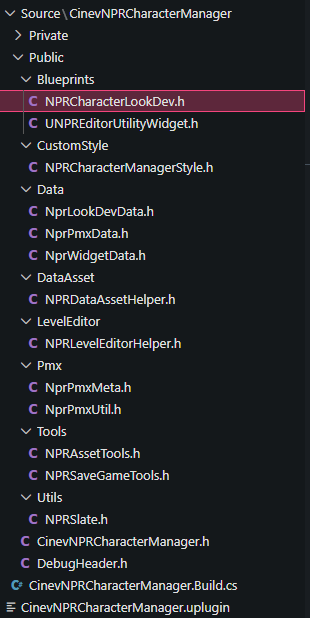

CinevNPRCharacterManager — C++ plugin headers

Editor — Character Environment Checker

This registration Blueprint is based on a C++ character actor. The art and planning teams assemble head, hair, and body parts and save presets as Data Assets. Editor Tick lets them preview characters and animations against a background without launching the game.

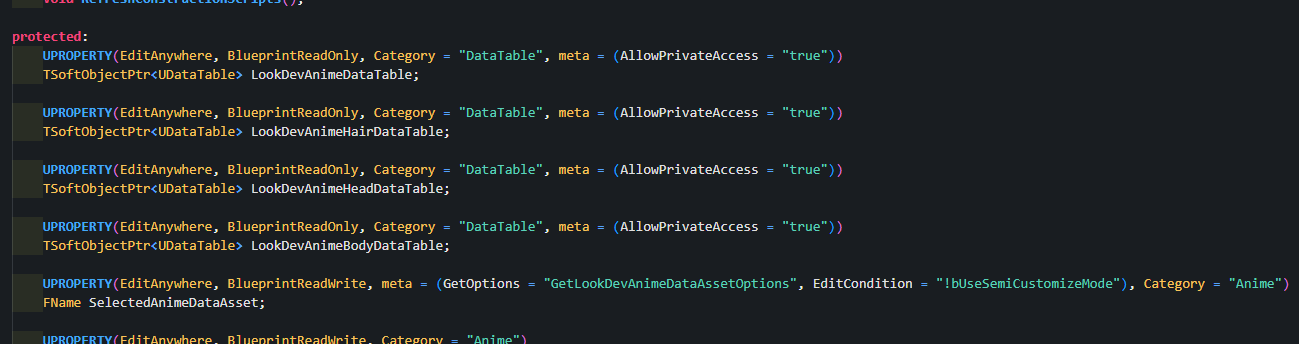

C++ Header — NPRCharacterLookDev UPROPERTY declarations

C++ character actor header — DataTable reference declarations

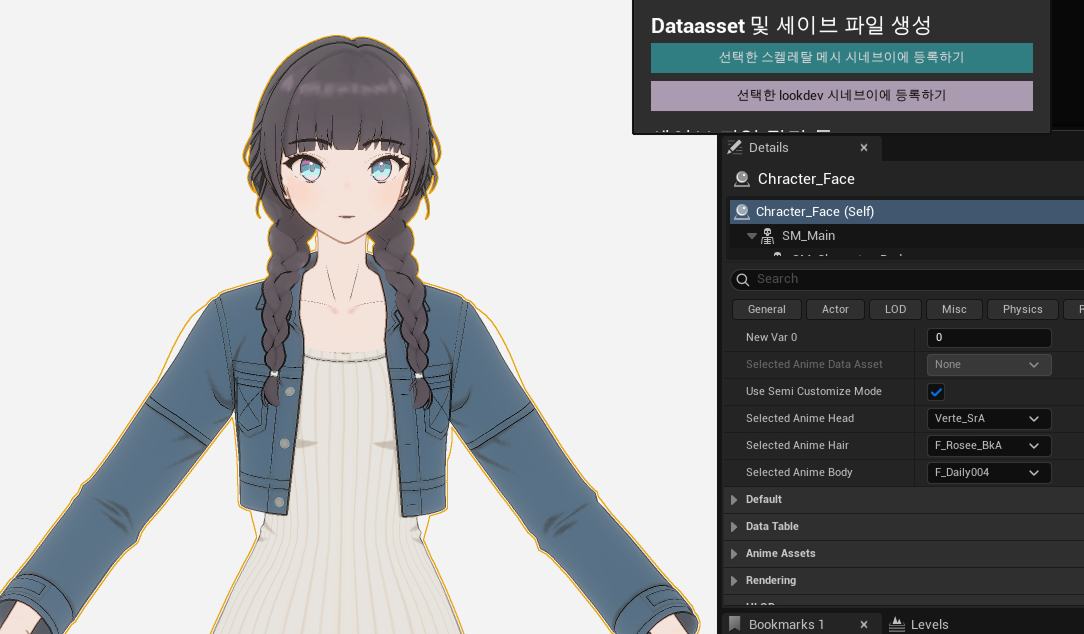

BP_Character_EnvCheck — Character registration UI

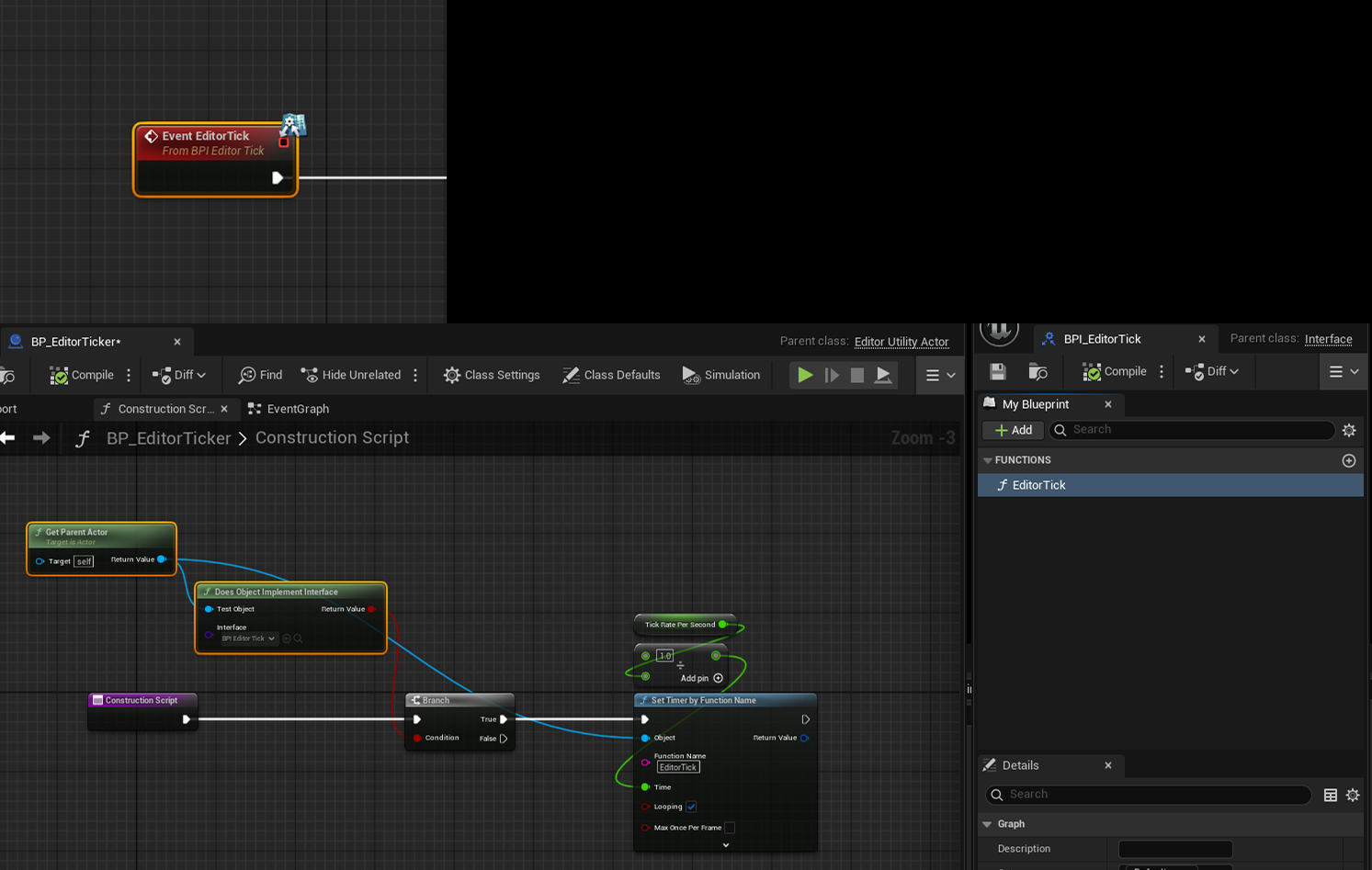

BP_EditorTicker + BPI_EditorTick node graph

Editor Tick — preview without PIE

Runtime — Character Blueprint

A separate codebase from the editor tool -- a runtime character Blueprint inheriting the base character class. Internal characters load parts asynchronously from editor-produced Data Assets (Head/Hair/Body split), while external VRM loads the entire model through a loader. The same Blueprint handles both, branching only at the load path.

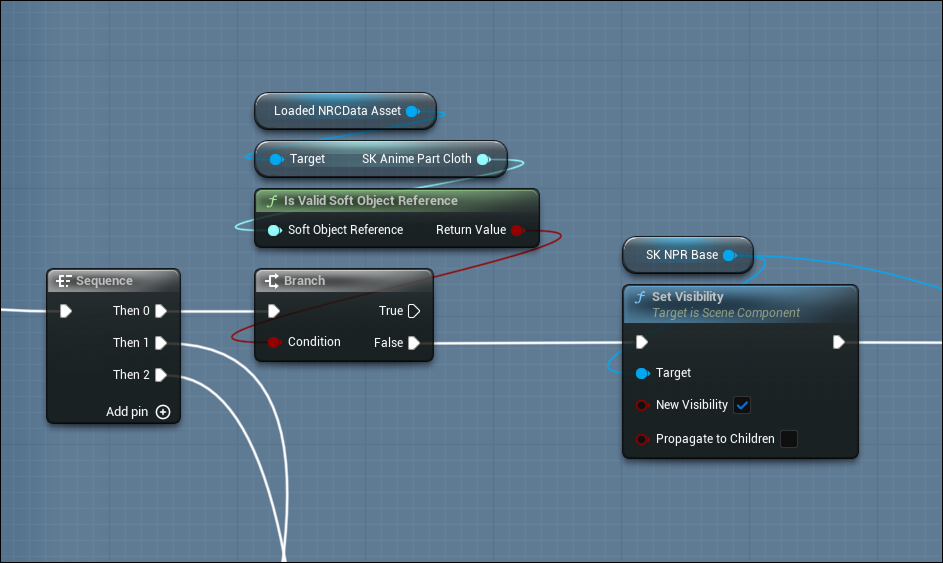

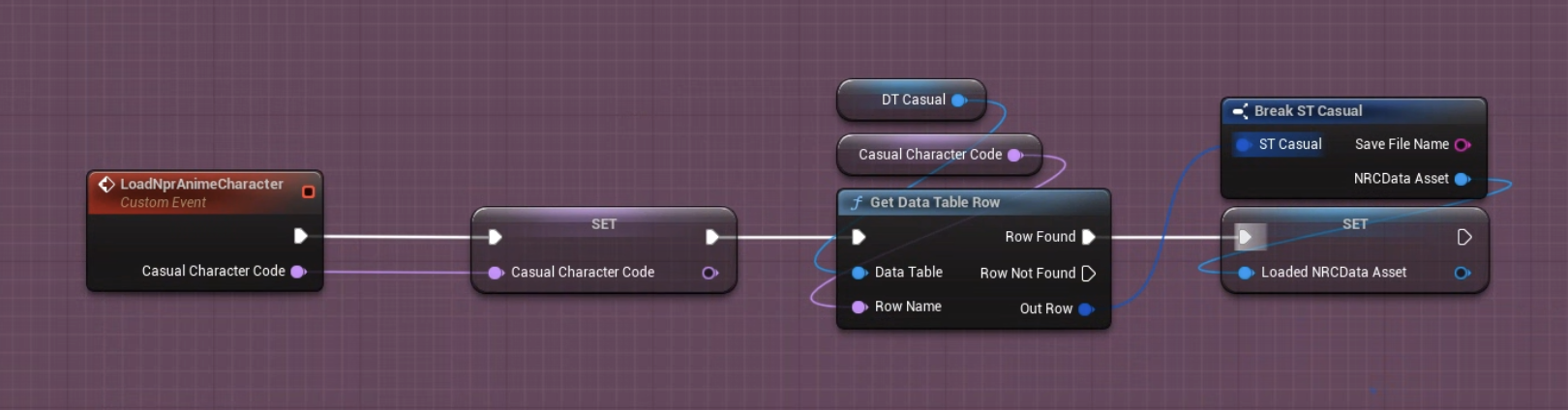

BP_Basemodel_TF — Loading NRC Data Asset from DataTable

Unified / split skeletal mesh load branching

External Model Support — VRM Reference Points

I wrote a C++ module for VRM4U that finds facial reference points through a four-level fallback. These points drive camera targets and face, upper-body, and full-body thumbnails. It also supports batch capture through a commandlet and A-pose/T-pose detection.

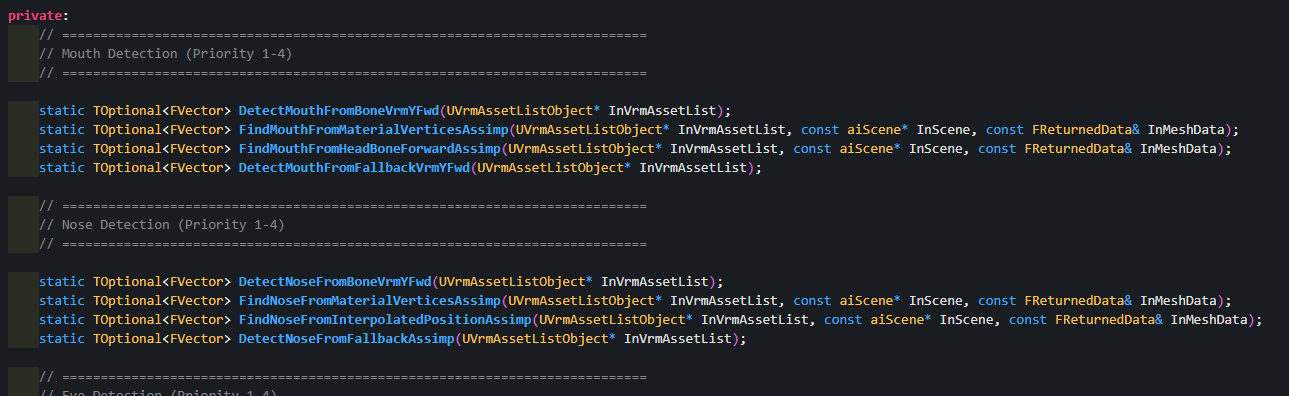

C++ Header — Mouth and Nose Detection Priority 1-4 fallback

C++ header — Mouth/Nose 4-level fallback detection

Auto face detection running on an external VRM

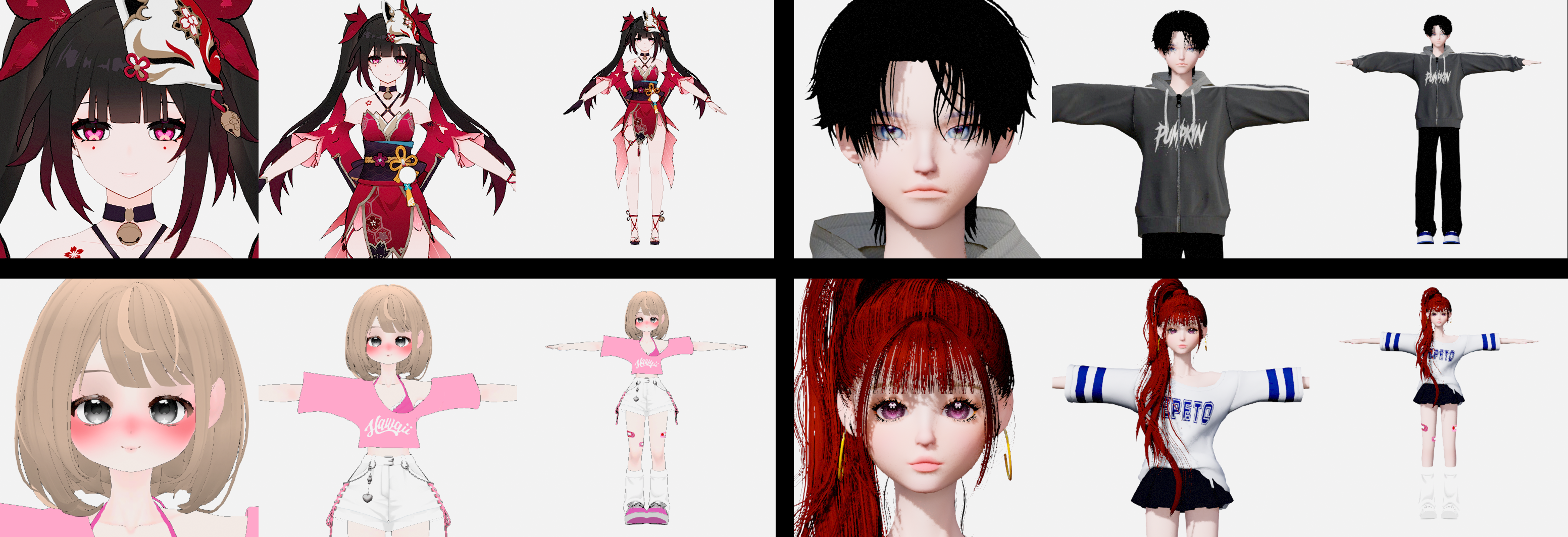

VRM Reference Points auto-thumbnail — face, upper body, and full body 3-angle auto-capture results

3-angle auto-captured thumbnails

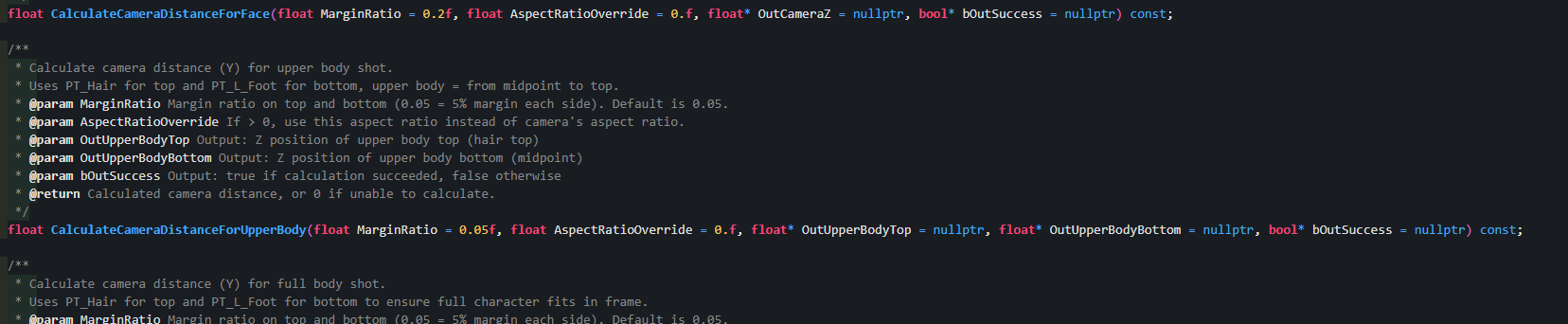

C++ — CalculateCameraDistanceForFace/UpperBody with margin and aspect ratio

C++ — auto camera distance calculation for 3-angle thumbnails

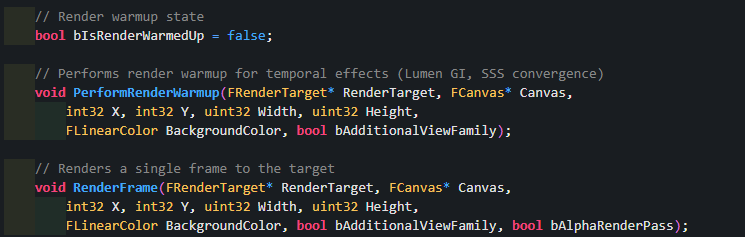

C++ — PerformRenderWarmup and RenderFrame for thumbnail capture

C++ — commandlet render frame capture (Lumen GI, SSS warmup)

Internal and external VRM character lineup

In-house + external VRM character lineup
